MVOT CLASSIC

Specification:
Height range min./ max :630 mm ( 25″) / 840 mm (33″)
Lifting speed: 8 mm/s
Bed length: 1830 mm ( 72″)
Bed Width: 610 mm (24″)
Base Size: 860 mm ( 34″ / 560 mm (22″)
Input tension: 230 V 50/60 Hz. & 110 V 50/60 Hz.
Chair Position to Table & vice-versa :Motorised
Gross weight: 20 Kgs.

Technical – Specialties:

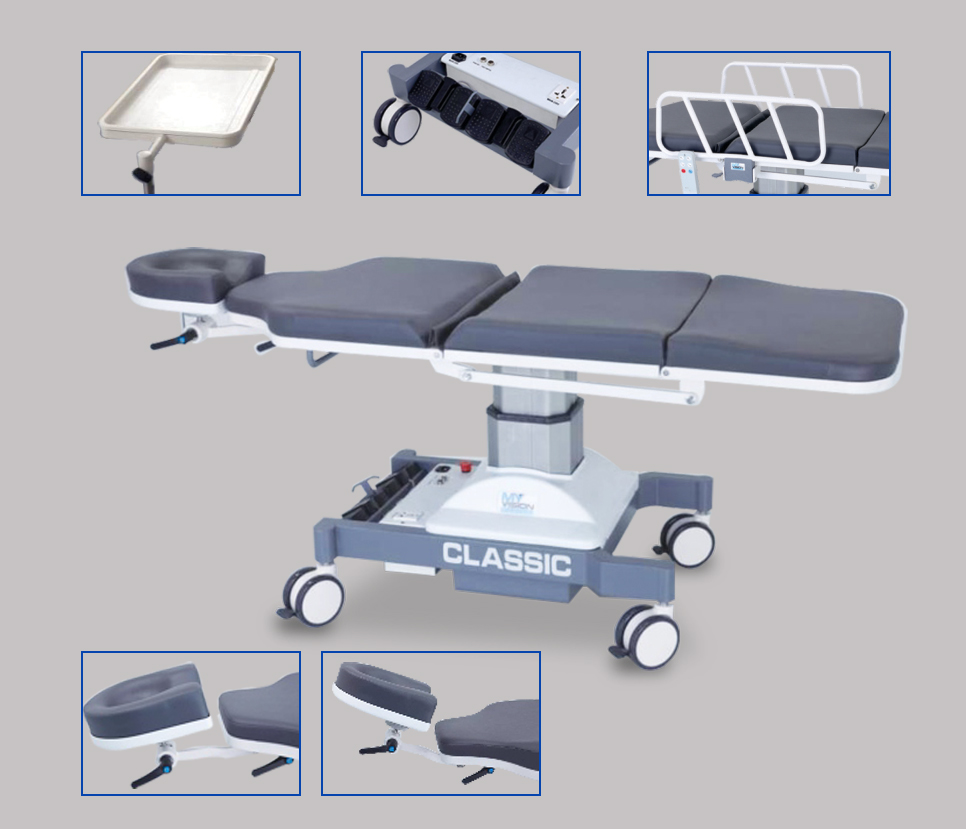

– Complete comfort Operation chair with Surgery Bed, on Castor Wheels for moving the patient to/ from the ward.
– The patient can be prepared for the operation, operated and offered post operative care on the same platform.
– Versatile design to support a wide range of patient’s head adjustment for Ophthalmic surgery.
– Easy transformation from a smooth transportation chair into versatile operation table.
– Manual Hand set with 2 memory positions, Auto return function and reset key, Removable foot Switch for electric Up / Down and chair position.
– High load-Actuator; 360 – degree rotating Stable twin wheel Castors with single locking for rotation and revolution way direction- locking.
– Smooth CE-Marked German DC Actuator- Controlling the Operation table.
– Comfortable upholstery, headrest for high precision 3 – way patient adjustment, manually
– Lifting column designed for a maximum patient weight 250 Kilograms.
